|||Syringe Pumps

Syringe Pumps

We resell all New Era products. Among the products there are Syringe Pumps and Peristaltic Pumps. Accessories include everything you need to use them in your laboratory.

The syringe pumps, depending on model, can operate as a single pump, dual pump system and as a pump network. High pressure and microfluidic versions are also available.

To select the correct pumping mode, you can have a look at the modes of operations page.

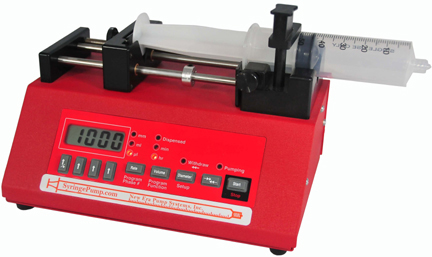

NE-1000

NE-300

NE-300

NE-500

NE-500/501

NE-1000

Description

  • Holds 1 Syringe from micro-liter sizes up to 60 mL (140 mL partially filled)
  • Infusion rates from 0.73 µL/hr (1 mL syringe) to 2100 mL/hr (60 mL syringe)
  • Easy-to-use keypad interface
  • One-click program upload from “Pumping Program Generator” spreadsheet
  • Space Saving Chassis: Foot print size of only 5 3/4″ x 8 3/4″
  • Won’t take up unnecessary space on your laboratory or production bench
  • Includes all the advanced functions and programming features of the NE-1000 series
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately

Read more about NE-1000 here

Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump

Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion.

Features of the NE-1000 Series of Syringe Pumps

  • Fully programmable; automation capable
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty

NE-300 Just Infusion™ Syringe Pump

Description

  • Just the features that you want, and none that you don’t want to pay for.
  • Holds 1 Syringe from micro-liter sizes up to 60 mL. (140 mL partially filled)
  • Infusion rates from 0.73 µL/hr (1 mL syringe) to 1500 mL/hr (60 mL syringe)
  • Easy-to-use keypad interface:
Set the syringe diameter, pumping rate, press Start
  • Pumps continuously until you stop the pump
  • Syringe purge mode
  • Power failure mode allows pump to continue pumping after a reset
  • Displays total volume dispensed in mL or µL units
  • Infusion rate can be changed while pumping
  • Selectable infusion rates units: mL/hr, µL/hr, mL/min, µL/min
  • Space Saving Chassis: Foot print size of only 5 3/4″ x 8 3/4″
  • Won’t take up unnecessary space on your laboratory or production bench
  • Remembers previous settings on power up
  • Precise reproducible flow rates
  • Operates from included 12VDC power supply.
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately. Pictured Syringe is for Demonstration purposes only.
NE-300

Read more about NE-300 here.

Infuses Only!

  • Does not withdraw, no volume target, no computer interface or programmability.
  • Just the features that you want to pay for!

NE-500

NE-500 does not come with a power supply.
 Please see OEM Starter Kit and OEM Net below.

  • Computer controllable: networkable up to 100 pumps
  • Stand-alone operation: pre-program the pump with a dispensing program, then operate the pump from an attached Foot Switch, button, or I/O controller
  • Add the OEM Starter Kit to run as a fully functional, stand-alone pump
NE-500

Description

  • Does not have a built-in user interface
  • Chassis mountable: 9 1/2″L x 4″W x 4 1/8″H (24.13 x 10.16 x 10.5 cm)
If chassis does not fit in your system, we make custom designed OEM syringe pumps to accommodate your specific needs
  • Operates from a 12V DC power source
  • Holds 1 syringe up to 60 mL. 140 mL with long chassis
  • Infusion rates from 0.73 µL/hr (1 mL syringe) to 2100 mL/hr (60 mL syringe)
  • Includes all the advanced functions and programming features of the NE-1000 Series
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately
  • Download our free pump terminal emulator or get a trial version of our Windows based SyringePumpPro
  • Custom modifications to the mechanics and firmware are also available
  • Read more about NE-500 here

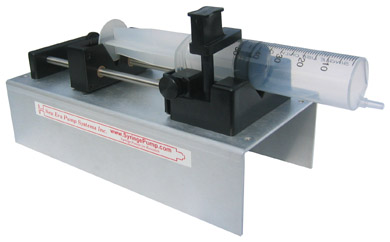

NE-500 open

Open chassis design easily mounts into your system.

Features of the NE-1000 Series of Syringe Pumps

  • Fully programmable and automation capable
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Available in High Pressure, Stall Detection & Long Chassis options.
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, extra I/O expansion port, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Motor stall detection available in NE-501 model
  • Dispensing accuracy of ± 1%
  • Unlimited lifetime technical support
  • Two year warranty
